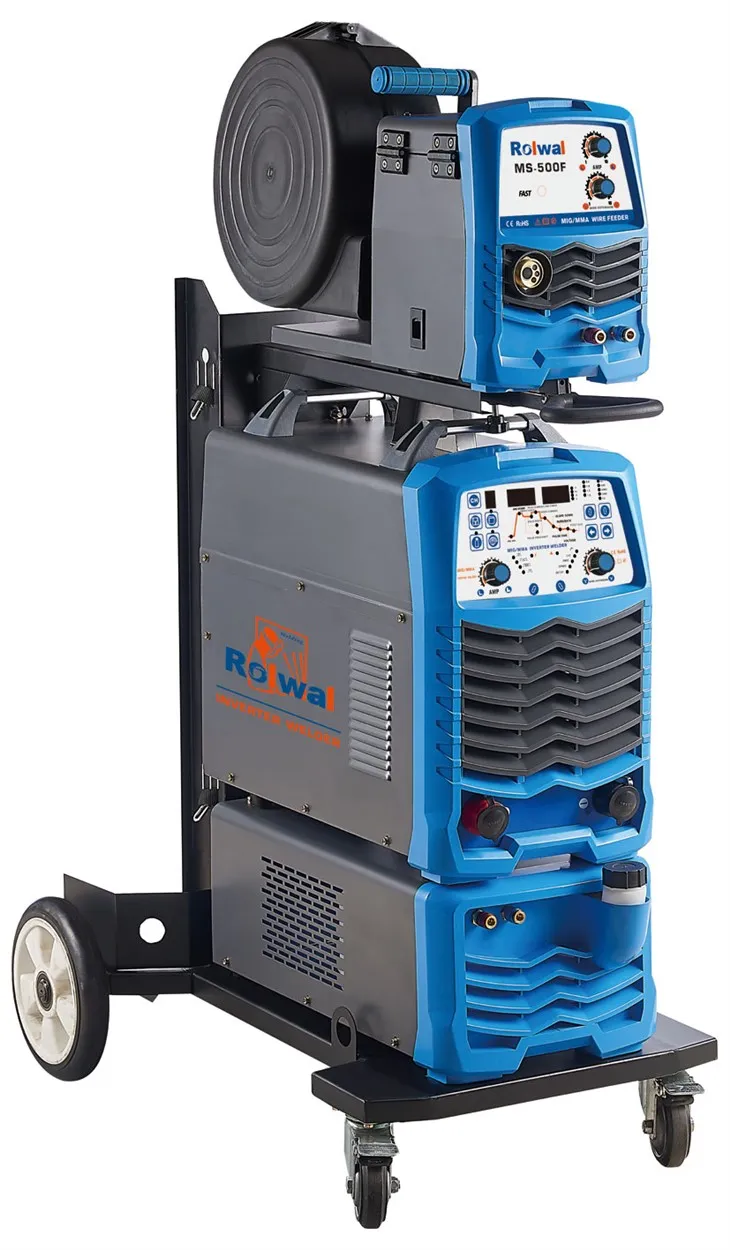

MIG Pulse 500A Professional Welder
Khoom Description
RolwalMIG MAG MMA dual mem tes vuam tshuabtuaj yeem teeb tsa ob qho tib si synergistically thiab manually, nruab raws li tus qauv nrog cov khoom siv trolley uas tuaj yeem tuav tau 50L lub raj mis yooj yim.Equipped raws li tus qauv nrog kev sib koom tes tswj kev ua haujlwm zoo ntawm cov xaim hlau thiab cov xaim xaim zoo li txhuas hlau.Nws kuj muaj cov haujlwm STICK, tuaj yeem weld steel thiab stainless hlau zoo kawg nkaus.Lub tshuab synergetic no ua rau nws muaj peev xwm ua tau ntau yam vuam txheej txheem nrog rau MIG vuam thiab kuj electrode vuam nrog yooj yim.MIG MAG MMA 500A Ob chav mem tes yog qhov zoo tshaj plaws kev xaiv rau tej yaam num thiab kho nyob ib ncig ntawm lub lag luam thiab shipyard.
Ob chav mem tes MIG qauv
cov khoom siv thev naus laus zis
Advanced IGBT module Inverter Technology
Peb lub vuam siv lub tshuab IGBT inverter zoo tshaj plaws thiab kev tswj hwm digital los txo lub tshuab qhov loj thiab qhov hnyav, ua kom nws ua tau zoo, thiab ua kom ruaj khov thiab txhim khu kev lag luam.
6 nyob rau hauv 1 Multi Process Welder Gas MIG/Gasless Flux Core/Stick/Lift TIG/Spot Welding/2T/4T/Spool Gun Compatible Carbon Steel, Stainless Steel, Aluminium, Copper Alloy Vuam nrog LED zaub
Multi prcess siv hom Overheating thiab Overcurrent Protection
Qhov no ntau yam welder nta plaub hom: roj / gasless MIG vuam, phau ntawv vuam, thiab yooj yim arc vuam, muab ntau yam kev ua haujlwm thiab nce kev hloov pauv.
Nrog rau kev tiv thaiv overheating thiab overcurrent, peb MIG welder lav koj cov kev ua haujlwm vuam 'ntev ntev, txhim khu kev ruaj ntseg.
MIG Ob Chav Pulse
MIG Welder, 6 hauv 1 Gas MIG / Gasless Flux Core / Stick / Lift TIG / Spot Welding / 2T / 4T / Spool Phom Tau Tshaj Txhuas Vuam Tshuab Loj LED Zaub 110V / 220V / 380V Ntau Txheej Txheem Welder
kawm ntxiv click kawm ntxiv click kawm ntxiv click kawm ntxiv click
MS -205P MS -250P MS -500P MS -500F
Feature thiab Advantage
Tag nrho hauv ib qho MIG Pulse / MAG / MMA / Lift TIG Welder Gasless rau Vuam Professionals Stainless hlau, Aluminium, tooj liab thiab carbon hlau
MS-400F IGBT Module 400A 3phase 380Vac:
-
Synergy Control Nrog Txoj Haujlwm-daim ntawv teev npe
Cov ntawv teev npe ua haujlwm tau yooj yim thiab intuitively tswj los ntawm nws cov graphical user interface.Peb tau sib sau ua ke qhov zoo tshaj plaws vuam nkhaus hauv txhua Txoj Haujlwm-No. rau kev ua tau zoo ntau txheej txheem vuam ntawm carbon steels thiab stainless hlau thiab txhuas alloys. Kev ua haujlwm yooj yim dua li yav dhau los.
-
Synergy Control
Txhim khu kev khiav hauj lwm txheej txheem & tswj
High Speed Pulse (HSP)
High-Speed Ob Chav Pulse (HDP)
High-Speed Spray Arc (HSA)
Micro Ob Chav Txheej Txheem (MDP)
Ultra Tsawg Spatter (ULS)
Hybrid Pulse Control (HPC)
High Speed Spot (HSS)
MS-500F IGBT Module 500A 3phase 380Vac :
-
MIG Synergic Control: Thaum koj xaiv cov hlau txoj kab uas hla thiab cov khoom siv roj, cov welder yuav cia li phim cov lus pom zoo tam sim no thiab xaim pub ceev.Yog li, nws yooj yim heev rau cov neeg pib tshiab.Tsis tas li, yog tias koj muaj kev paub txog vuam, koj tuaj yeem kho qhov vuam tam sim no raws li koj qhov kev thov. tus kheej welding cwj pwm.
-
Weld Aluminium: Qhov no Multi MIG welder tuaj yeem vuam ntau yam hlau, Nws tuaj yeem tsis tsuas yog vuam stainless hlau, hlau alloy, hlau tab sis kuj tuaj yeem vuam aluminium. phom.
-
Daim ntawv thov dav: Ntau yam vuam hlau tsim nyog, haum rau txhua yam kev xav tau vuam .023 "/.030" /.035 "khoom hlau, .023" /.030 "/.035" flux tub ntxhais hlau,.035" /.040 "/.045" txhuas hlau.
-
Guarantee: Peb lub tshuab vuam yog tsib xyoos lav, lub sijhawm no, peb lav txhua qhov teeb meem nrog lub tshuab vuam no.
Cov ntaub ntawv Parameter
| Cov khoom qauv | MS -400F | MS -500F |
| Cov txheej txheem: | MIG/MAG Pulse, MMA, Spot, 2T/4T | MIG/MAG Pulse, MMA, Spot, 2T/4T |
| Vuam khoom | Hlau, Al-Sr, Al-Mg, Stainless Hlau, Tooj | Hlau, Al-Sr, Al-Mg, Stainless Hlau, Tooj |
| Ua haujlwm voltage | 3-Phase 380-440v | 3-Phase 380-440v |
| Ntau zaus | 50/60Hz | 50/60Hz |
| Lub luag haujlwm voj voog | MIG 400A -60% | MIG 500A-@60% |
| Hlau coils | Ø MIG: 100-200mm | Ø MIG: 100-200mm |
|
Electrode txoj kab uas hla |
MMA: 1.6-5 {2}}mm | MMA: 1.6-6 {2}}mm |
| Housing Protection degree: | IP23S | IP23S |
| Hlau feed unit MIG: | 4 rolls (2 nrog tsav) | 4 rolls (2 nrog tsav) |
|
Vuam kab diam: |
{0},6mm / 0,8mm / 0,9mm / 1,0/1,2/1.4/1.6mm | {0},8mm / 0,9mm / 1.0mm / 1,2/1.4/1.6mm |
|
Dimensions (LxWxH): |
102 x 72 x 150 cm | 102 x 72 x 150 cm |
Cov khoom siv hluav taws xob
- MIG Consumables
- Ntau qhov loj Flux Core Drive Rolls
- Ntau qhov loj U-Groove Tsav Rolls (Aluminium Hlau)
- Clamp thiab Tool Kit
- MIG phom sib txawv
Thaj chaw siv
- Vuam Kho
- Automotive/Muffler khw
- Motorsports
- Kev tsim kho
- Fabrication
- Lub Hoobkas tu
Pob muaj
- MIG Phom nrog 3m cable thiab Euro style ceev connector
- Stick Electrode Holder nrog vuam cable thiab 50-70 connector
- Av Clamp nrog vuam cable thiab 50-70 connector
- Ar/CO2 Regulator nrog Hose
- Tsav Roll V Groove
- Mask/Brush/Manual
FAQ
Q: 1.Lub tshuab MIG vuam siv sijhawm ntev npaum li cas?
A: Lub neej ntev ntawm MIG vuam tshuab tuaj yeem sib txawv nyob ntawm kev siv, kev saib xyuas, thiab cov khoom siv zoo. Nrog kev saib xyuas kom zoo, lub tshuab ua kom zoo tuaj yeem nyob tau ntau xyoo.
Q: 2.Kuv puas tuaj yeem siv MIG vuam tshuab rau cov hlau nyias thiab tuab?
A: Yog, MIG vuam tshuab muaj ntau yam thiab muaj peev xwm ua tau ob qho tib si nyias thiab tuab hlau. Kev hloov kho rau qhov teeb tsa voltage thiab xaim ceev yuav tsim nyog rau cov khoom sib txawv.
Q: 3.Kuv puas tuaj yeem vuam txhuas nrog lub tshuab MIG vuam?
A: Yog, MIG vuam tshuab tuaj yeem siv rau vuam txhuas los ntawm kev siv cov xov hlau tshwj xeeb txhuas thiab cov roj thaiv kom tsim nyog, feem ntau yog cov ntshiab argon lossis sib xyaw ntawm argon thiab helium.
Q: 4.Kuv puas tuaj yeem siv flux-cored hlau nrog MIG vuam tshuab?
A: Yog lawm, qee qhov MIG vuam tshuab txhawb kev siv cov xaim flux-cored, uas tshem tawm qhov xav tau rau cov khoom siv tiv thaiv sab nraud. Txawm li cas los xij, tsis yog txhua lub tshuab tau sib xws, yog li nws yog ib qho tseem ceeb uas yuav tsum tau xyuas cov khoom siv tshwj xeeb.
Q: 5.MIG welding tshuab puas siv tau rau txoj haujlwm vuam sib txawv?
A: Yog, MIG vuam tshuab tuaj yeem siv rau hauv ntau txoj haujlwm vuam, xws li tiaj tus, kab rov tav, ntsug, thiab nyiaj siv ua haujlwm. Txawm li cas los xij, qee qhov kev hloov kho thiab cov txheej txheem yuav tsum tau ua raws li txoj haujlwm thiab kev sib koom ua ke.
Q: 6.Puas yog tsim nyog tshem tawm cov xim los yog xeb ua ntej siv MIG vuam tshuab?
A: Yog lawm, nws raug nquahu kom ntxuav cov hlau saum npoo ua ntej vuam los xyuas kom meej fusion zoo. Xim, xeb, lossis lwm yam khoom paug tuaj yeem cuam tshuam rau qhov zoo thiab kev ncaj ncees.
